Eddy Current Separator

EDDY CURRENT SEPARATOR

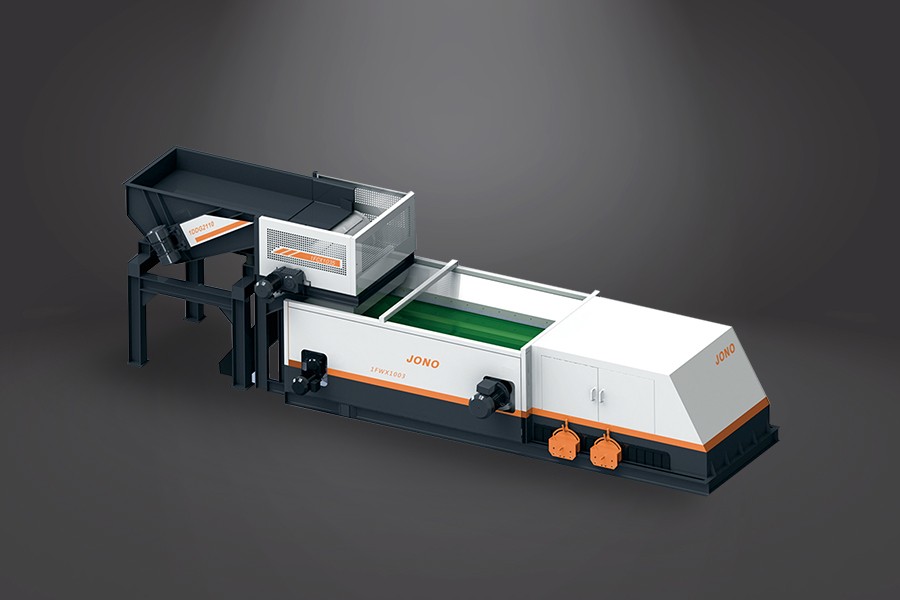

The Eddy Current Separator (ECS) is an advanced metal sorting unit that is capable of separating non-ferrous metals such as aluminium,copper,brass,alloy from dry recyclables. JONO eddy current separator can produce higher purity and increased yield of better separation of aluminum cans from PET plastic beverage containers.Nowadays it became the most economical beverage bottle sorting and recycling equipment.

The principle of eddy current separator is to separate conductor from non-conductor by using the transformed magnetic field of conductor to produce force.

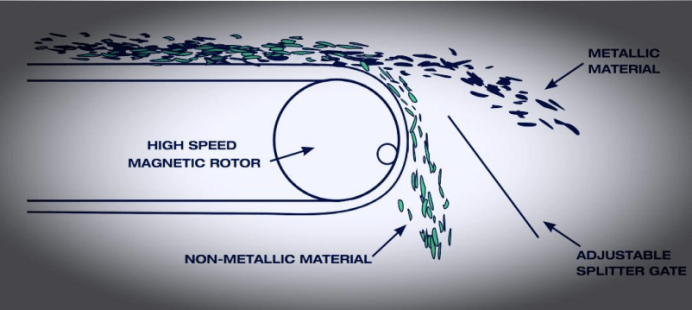

The magnetic roller is installed at the discharging end of the high-speed belt and rotates at high speed during the operation of the equipment. Materials entering the high-speed belt are uniformly distributed on the surface of the belt. When the metal enters the magnetic field area of the magnetic roller, force is generated by cutting the magnetic induction line.Nonferrous metals do free falls and fall into nonferrous areas.The application of eccentric magnetic pole technology can effectively ensure the separation rate and unit time processing capacity.  Eccentric magnetic pole technology can effectively ensure the separation rate and processing capacity.

Working Principle

The principle of the eddy current separator is to use the magnetic field of the electric conductor transform to produce the force and to separate the conductor from the non-conductor. Magnetic roller is installed on the high-speed belt discharging end, with high speed rotary motion during operation, the material in the high-speed belt were uniformly distributed in the surface of the belt, when the metal into the magnetic roller magnetic field, by cutting the magnetic induction line to generate force ,kick the non-ferrous metal into specific area. Remaining materials will fall into the other area.

The eddy current separate can sort out non-ferrous metals such as cans, pull rings, copper and other plastic, fabric, wood bamboo, masonry and so on, which can reduce the generation of dioxin and re-use high-value recyclable resources.

Features

• High separation performance.It can separate as small material as the size of 2-5mm,which could reach the separation rate of 95%.

• Due to consistent optimization,the model work with lowest downtime.

• The compact machine structure make it need only small space.

• Use-friendly.It’s very easy to operate and maintain.
